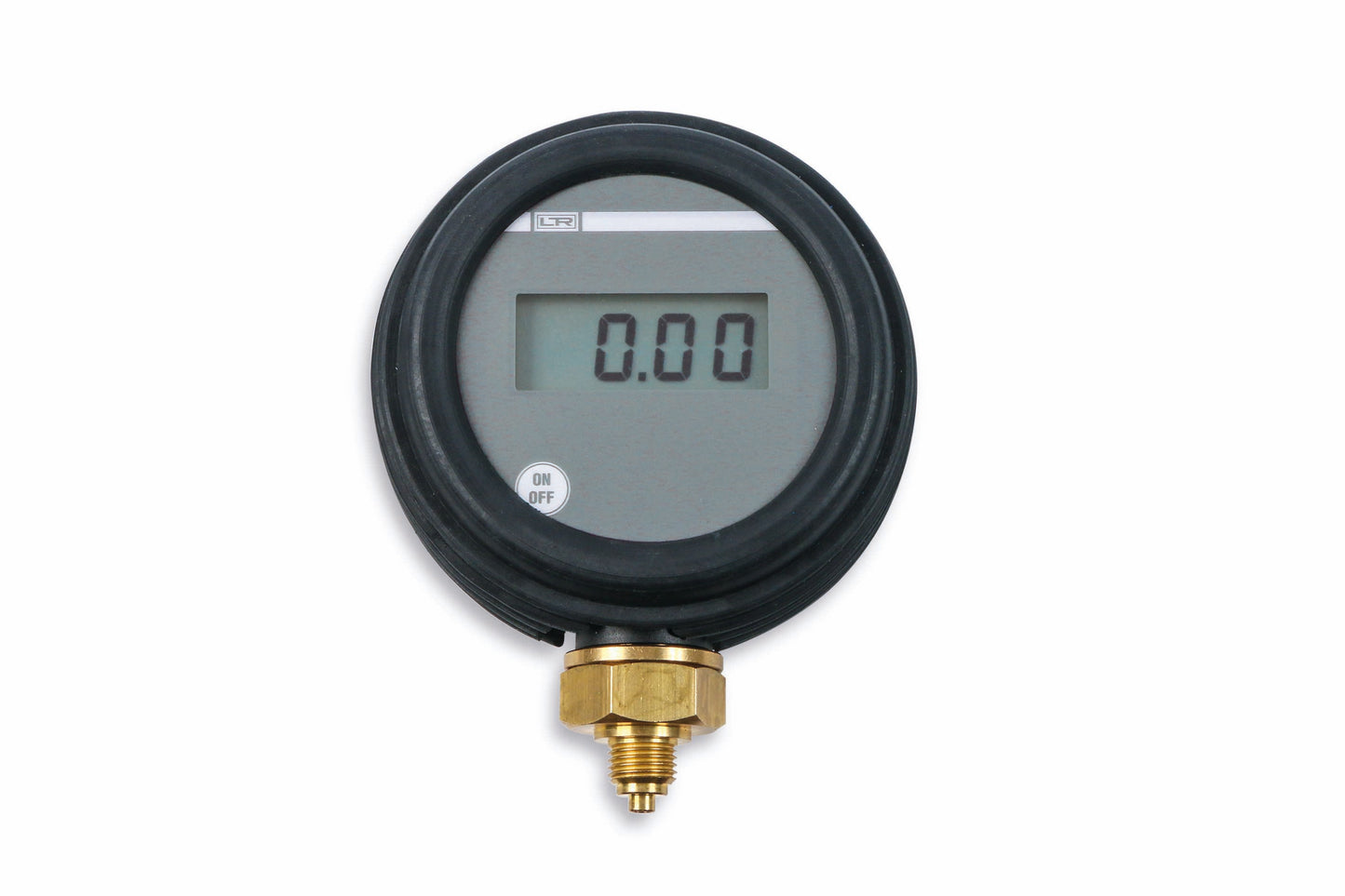

Hydraulic digital pressure gauge -1...3 bar

The digital pressure gauges of the DM 80 product family are suitable for digital measurement and display of pressures in hydraulic systems, especially for oil and water. Depending on the model, the devices can display current measured values as well as min and max values with an accuracy of 0.5% of the full scale value.

The DM 80 digital manometers are available individually or as part of a complete test case. They are very robust, reliable, long-term stable and easy to use. In addition, the digital manometers have an integrated high-performance rechargeable battery or are battery-operated and allow the pressure readings to be not only displayed but also saved.

• Ø80mm
• Ceramic measuring cell
• Pure display without bar graph, peak value display and min/max display
• Display of bar/PSI, manually switchable
• Accuracy ± 0.5 % FS
• No backlight
• Battery operated up to 1500 h
• Rotatable display approx. 330 ° without backlight
• easy-to-read display
• Thread G 1/4 according to EN 837 other pressure connections and measuring ranges available on request
• Made in Germany
• Certified quality
• Supplied as standard with 3-point factory calibration certificate

Adapted to your needs: If you wish, we can work with you to create your individual device design.

• Front foil with your company logo
• Color of the rubber cap
• Connection options
• Measuring ranges
